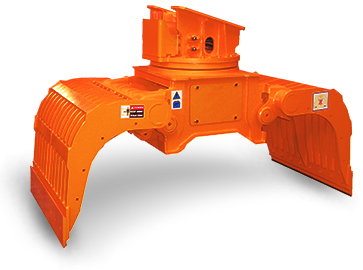

It is possible to make 360 degrees revolution.

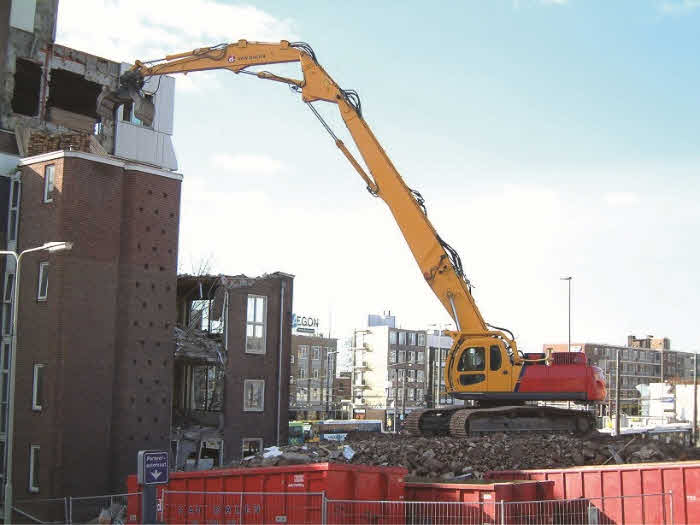

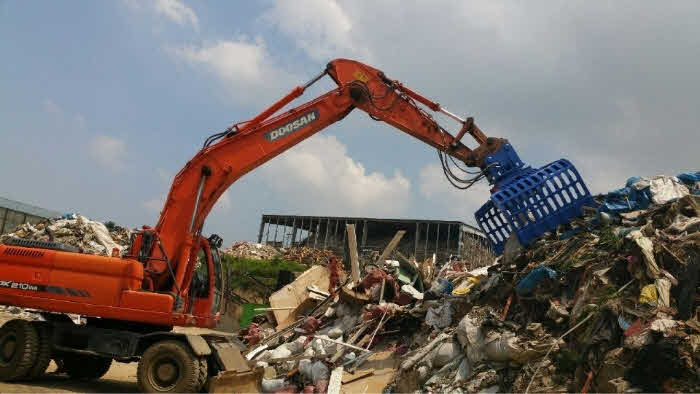

It is mainly used for demolishing, material handling and sorting rocks and scrap etc.

Model	Unit	ACE STA600	ACE STA800	ACE STA1000	ACE STA1500
Applicable excavator	ton	12~18	18~25	28~35	36~42
Gross weight	kg	1,050	1,370	1,700	2,000

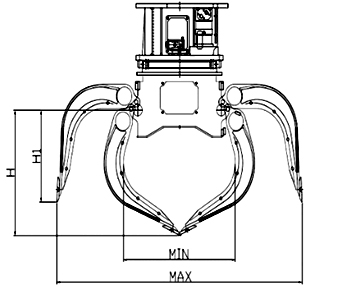

Min	mm	863	883	982	1,060
Max	mm	1,886	1,923	2,082	2,120
H	mm	883	776	905	956
H1	mm	567	744	770	794
L	mm	900	1,030	1,080	1,160
Lifting capacity	kg	7,000	8,100	10,200	14,100
Max. working pressure	bar	280	280	300	320
Require oil flow	lpm	40~80	40~80	210	250
