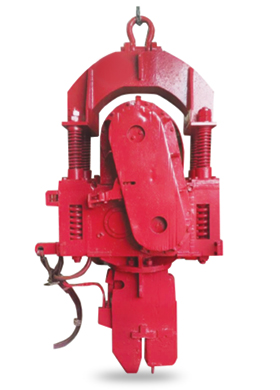

Electric Vibro hammer for crane
- Available Brand-new, reconditioned and 2nd-hand product
- Low noise and high efficiency
- Wide application range, customized for any size and type of pile.

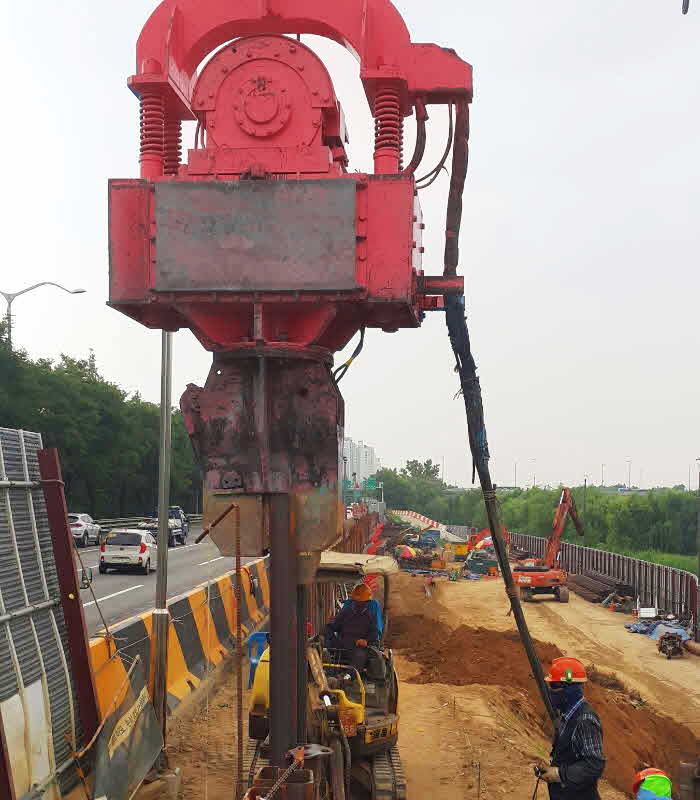

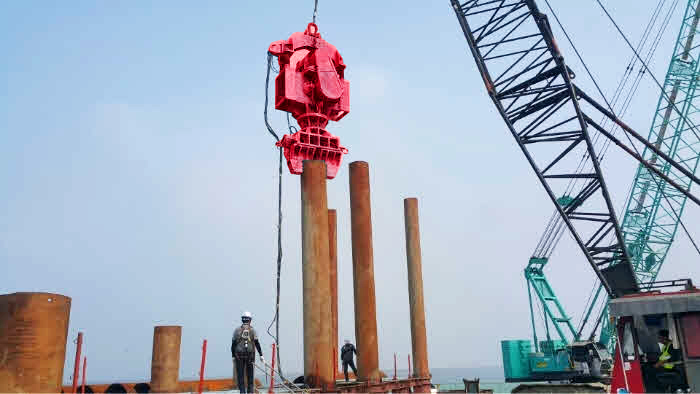

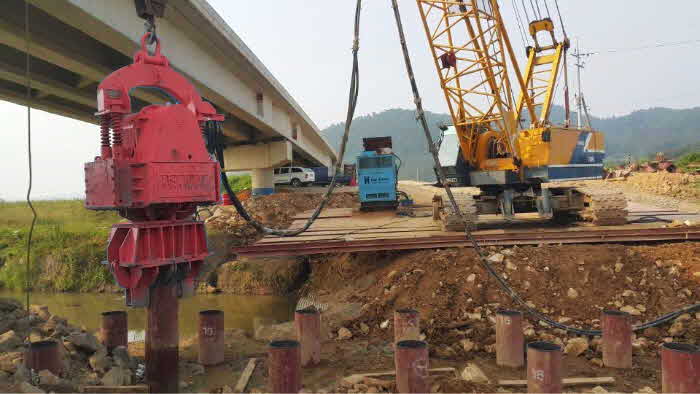

- It is widely used in infrastructure construction of large bridges.
Specification
Electric Hammer
| Model | Unit | 45kw | 60kw | 75kw | 100kw | 120kw | 135kw | 150kw | 180kw | 200kw | 270kw | 300kw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Motor Output |
kw | 45 | 60 | 75 | 100 | 120 | 135 | 150 | 180 | 200 | 270 | 300 |
| Eccentric Moment |
kg.m | 25 | 30 | 35 | 50 | 70 | 80 | 100 | 120 | 150 | 200 | 270 |
| Frequency | c.p.m (rpm) |
1150 | 1100 | 1100 | 1100 | 1000 | 1000 | 980 | 980 | 980 | 980 | 900 |
| Vibrating Force |
ton | 34 | 41 | 48 | 68 | 79 | 91 | 109 | 131 | 164 | 219 | 295 |
| Amplitude | mm | 9 | 10 | 11 | 12 | 14 | 13 | 15 | 17 | 20 | 25 | - |
| Max, Line Pull For Extraction |
ton | 20 | 25 | 28 | 35 | 40 | 40 | 50 | 80 | 100 | 150 | - |
| Suspended Weight |
kg | 3700 | 5200 | 5800 | 7500 | 9300 | 10000 | 11300 | 14000 | 15500 | 16000 | - |
| Size (H*W*T) |
mm | 3200 *1200 *970 |
3400 *1370 *1100 |
3500 *1400 *1100 |
3500 *1900 *1200 |
4000 *1900 *1200 |
4000 *2100 *1300 |
4000 *2100 *1500 |
4100 *2500 *1500 |
4100 *2500 *1500 |
5700 *2500 *1600 |
3600 *2200 *2000 |
Generator
| Model | Unit | 45kw | 60kw | 75kw | 100kw | 120kw | 135kw | 150kw | 180kw | 200kw | 270kw | 300kw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rating | kw | 150 | 250 | 300 | 350 | 450 | 450 | 500 | 600 | 800 | 850 | 1200 |
| Voltage | volts | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 |
| Frequency | hz | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Weight | ton | 3 | 4 | 4 | 5.5 | 6.5 | 6.5 | 7 | 8.5 | 10 | 12 | 12 |
