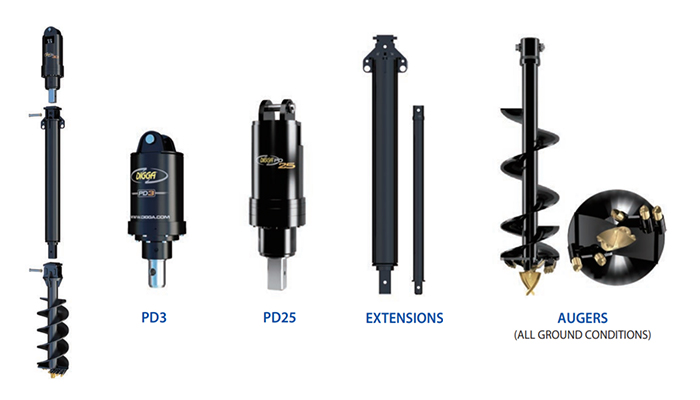

Auger Drill
- Stable performance with high quality hydraulic motor and output shaft bearing is made of upper grade material
- Safe operation by fixed installation inside outer housing and assembling in top-down type the drive head including shaft and gear
- Available from soft soil to solid ground mixed stones with D10 auger made of high quality material
Specification

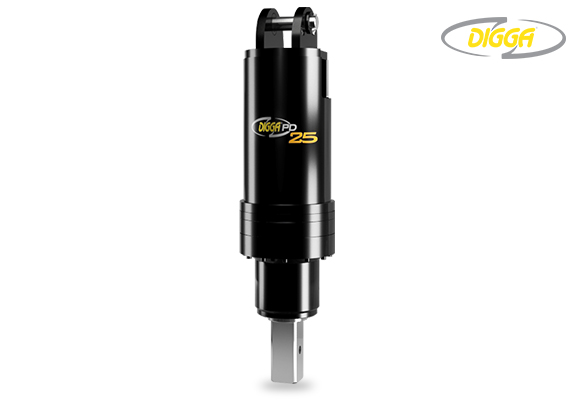

| Model | Unit | PD3 | PD25 |
|---|---|---|---|
| Max. torque | Nm | 2,307 | 26,267 |
| Max. pressure | bar | 3,000~27,000 | 5,000~35,000 |
| Max. speed | rpm | 240 | 240 |
| Max. flow | lpm | 115 | 230 |
| Max. power | Kw | 25 | 50 |
| Overall length | mm | 557 | 1,152 |
| Diameter | mm | 187 | 355 |
| Weight (no hitch) | kg | 45 | 300 |
| Standard output shaft | mm | 65 (RND) | 100 (SQ) |
