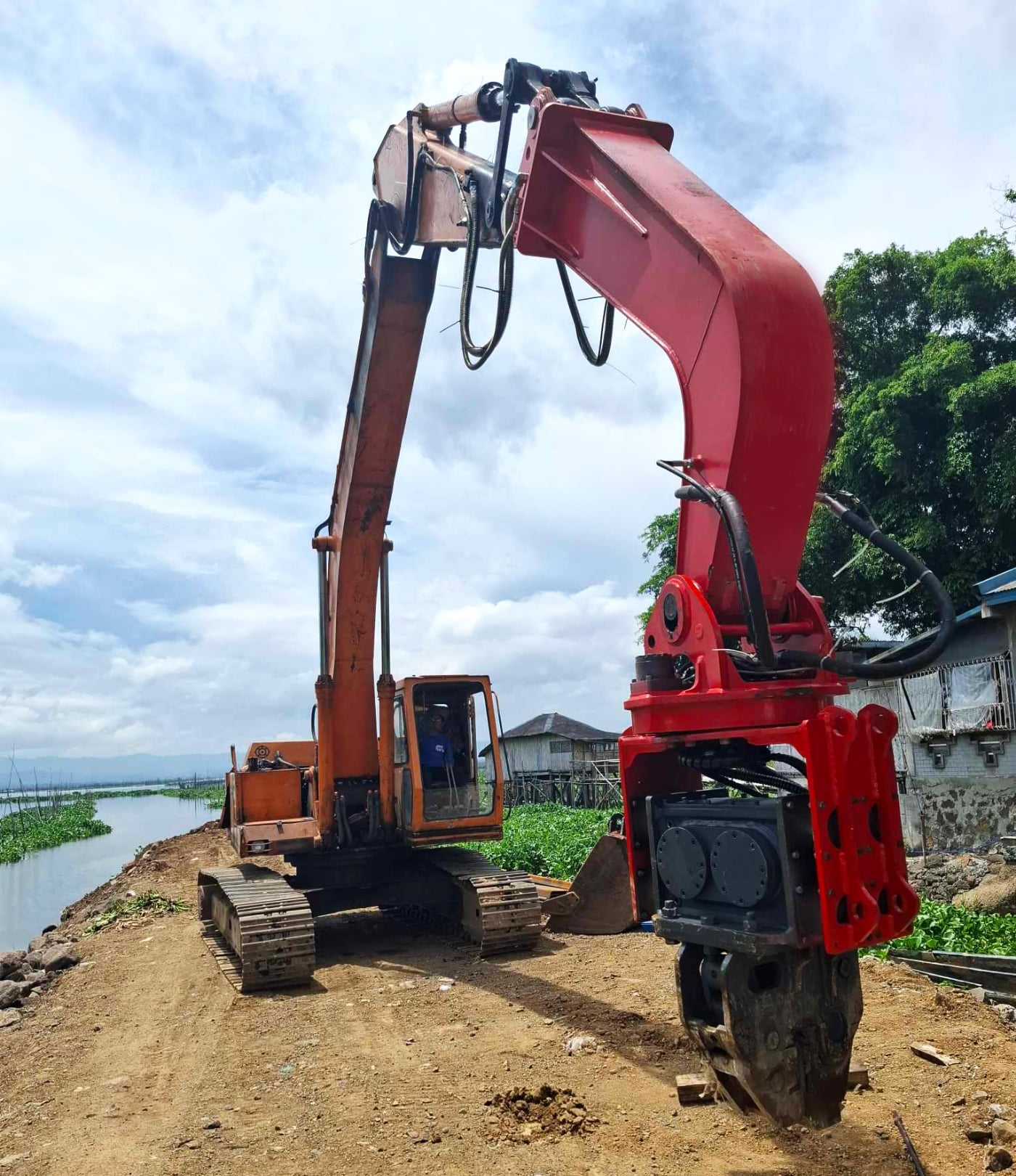

Vibro Hammer
- Worm gear mechanism lowers failure rate
- Piston seal type for rotary joint, reduces oil leaking
- Hydraulic & Electric parts are made in Europe
- Coolant injection prevents overheating
- External gauge shows pressure easily
- Simplified design avoids damage during operation

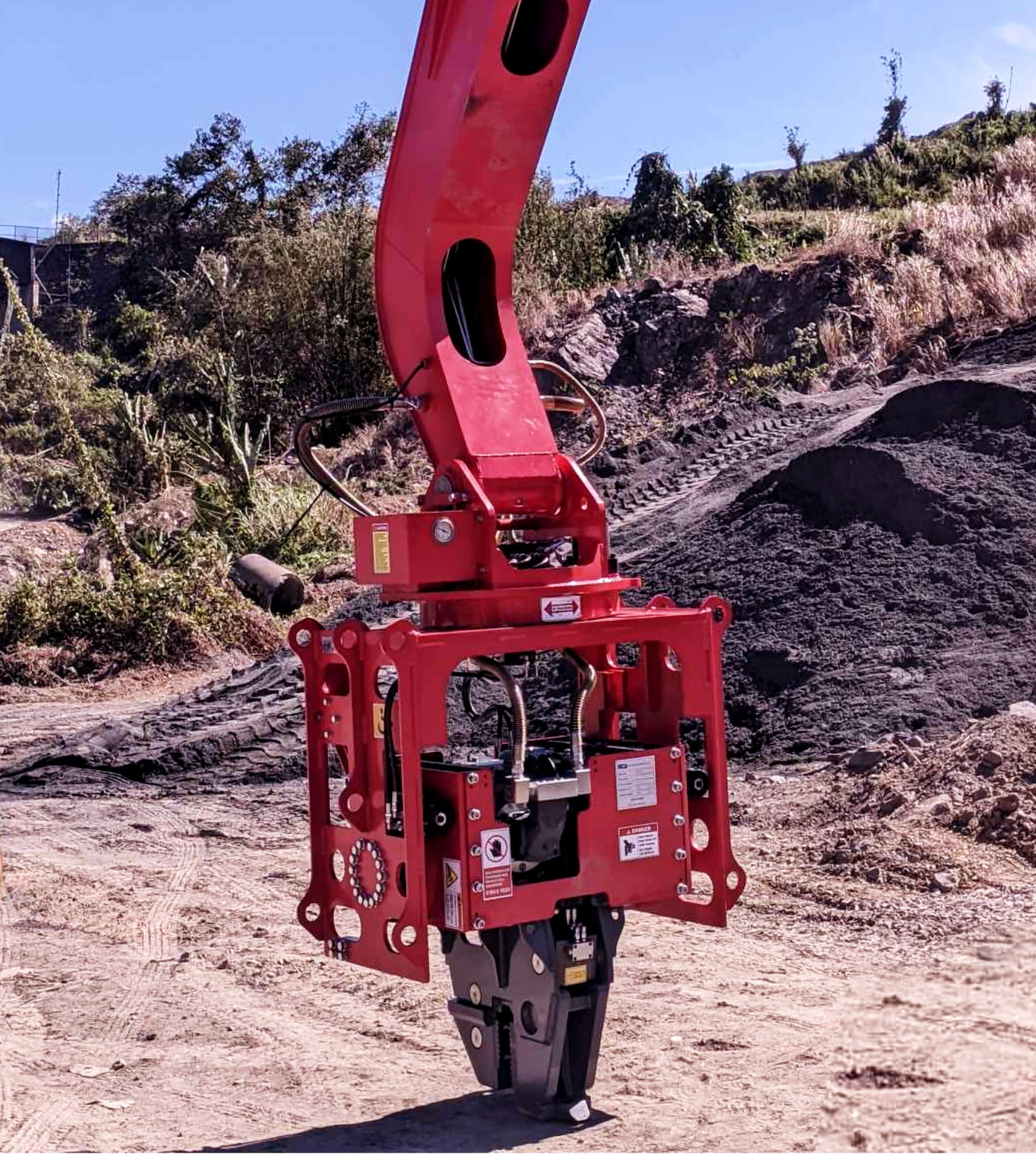

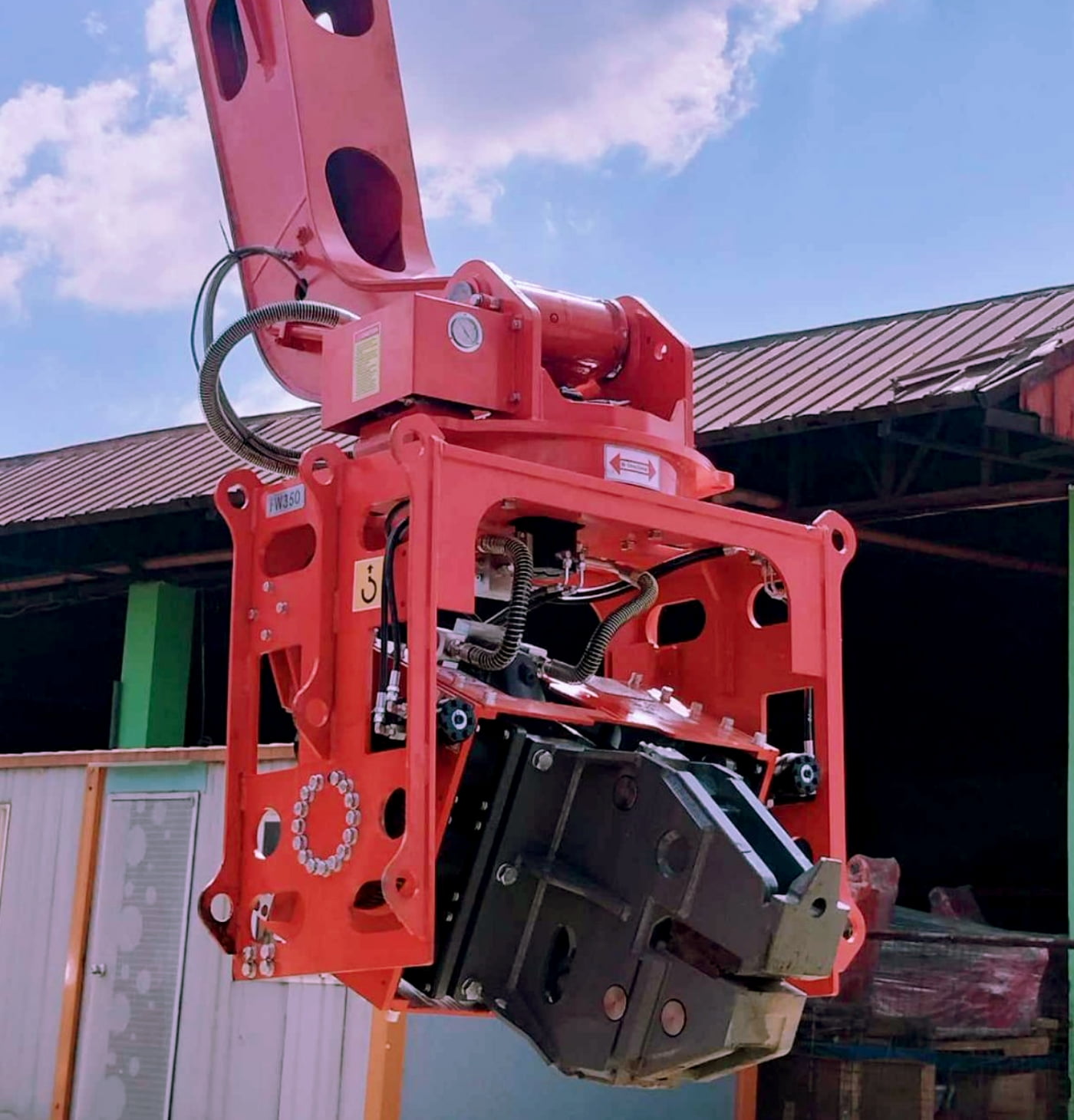

Detail view

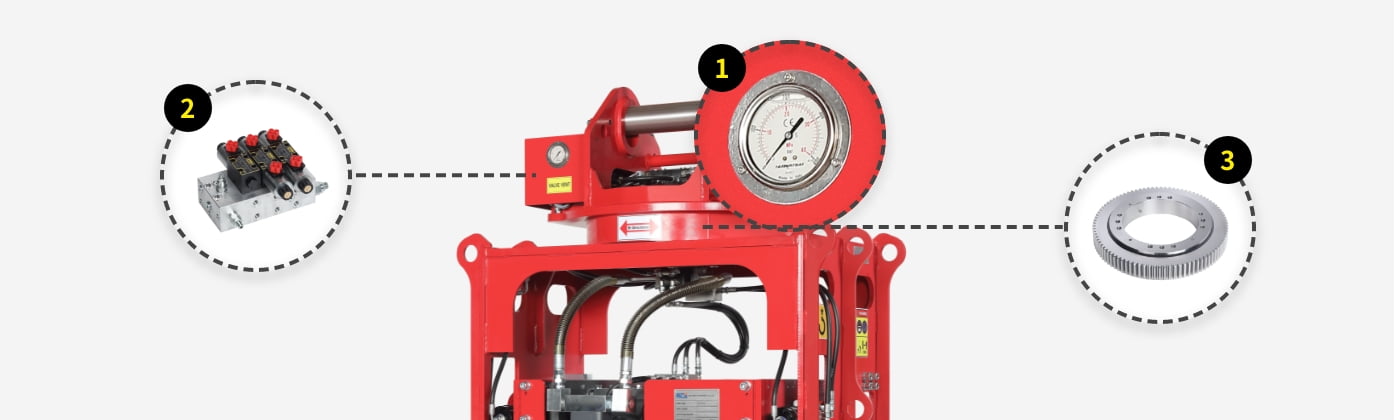

- ① Pressure gauge : Shows pressure level easily
- ② Control valve block : Uses original PARKER control valve with high precision and quality
- ③ Slewing gear : Our gears are made of high grade alloy steel

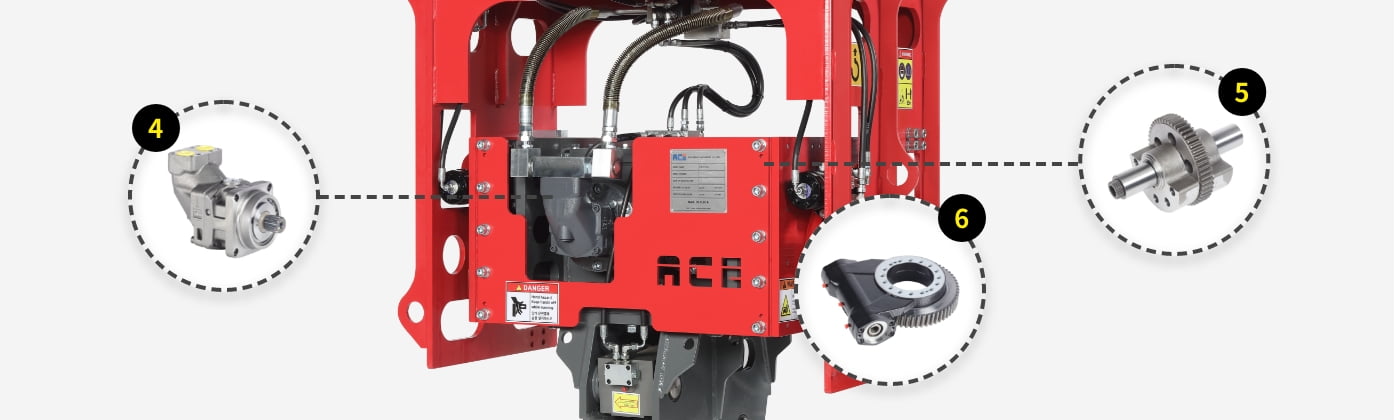

- ④ Vibrating motor : Motors(Rexroth or Parker brand (made in EU)) specialized for vibrating
- ⑤ Main gear : Our gears can go down the depth, more efficient vibrating
- ⑥ Worm gear : Both gears prevent falling, no check valve, lower maintenance cost

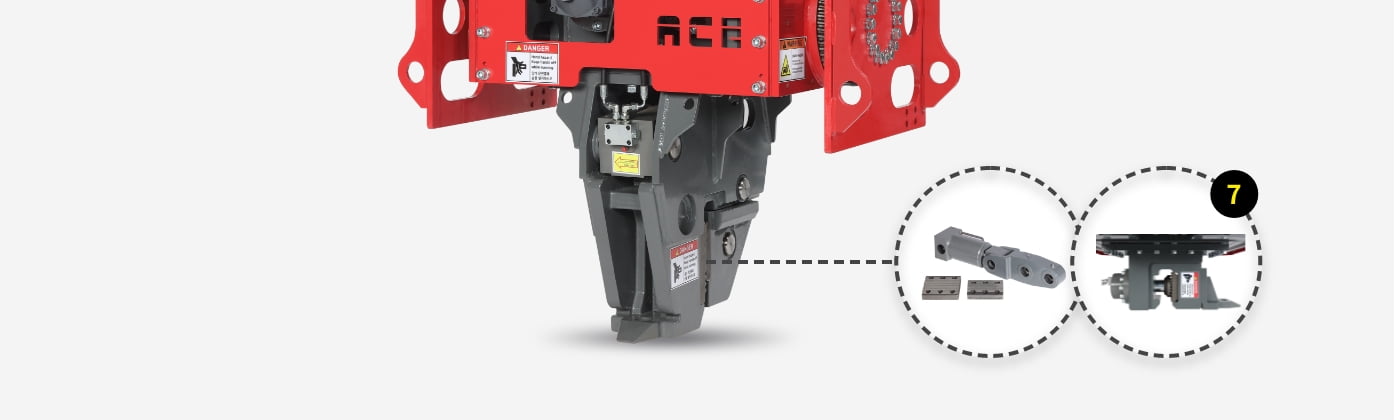

- ⑦ Clamp : Cylinder type, Improved durability

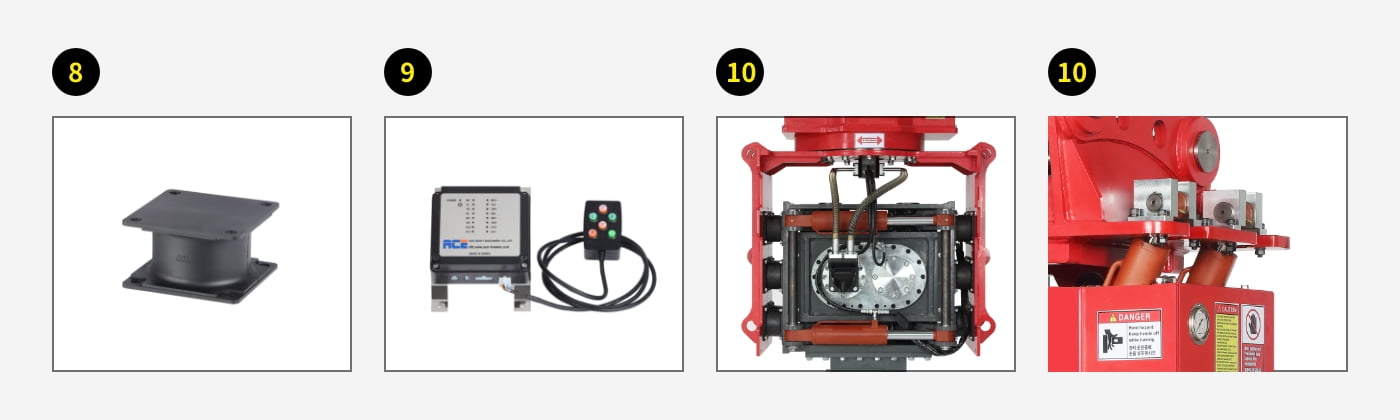

- ⑧ Cushion rubber : High quality Genuine AUTOX (made in Korea)
- ⑨ Control box & switch : Self-made by ACE, less electric fault
- ⑩ Cylinders for Side grip type : Five cylinders operate side grip, tilting, and clamp function
Specification

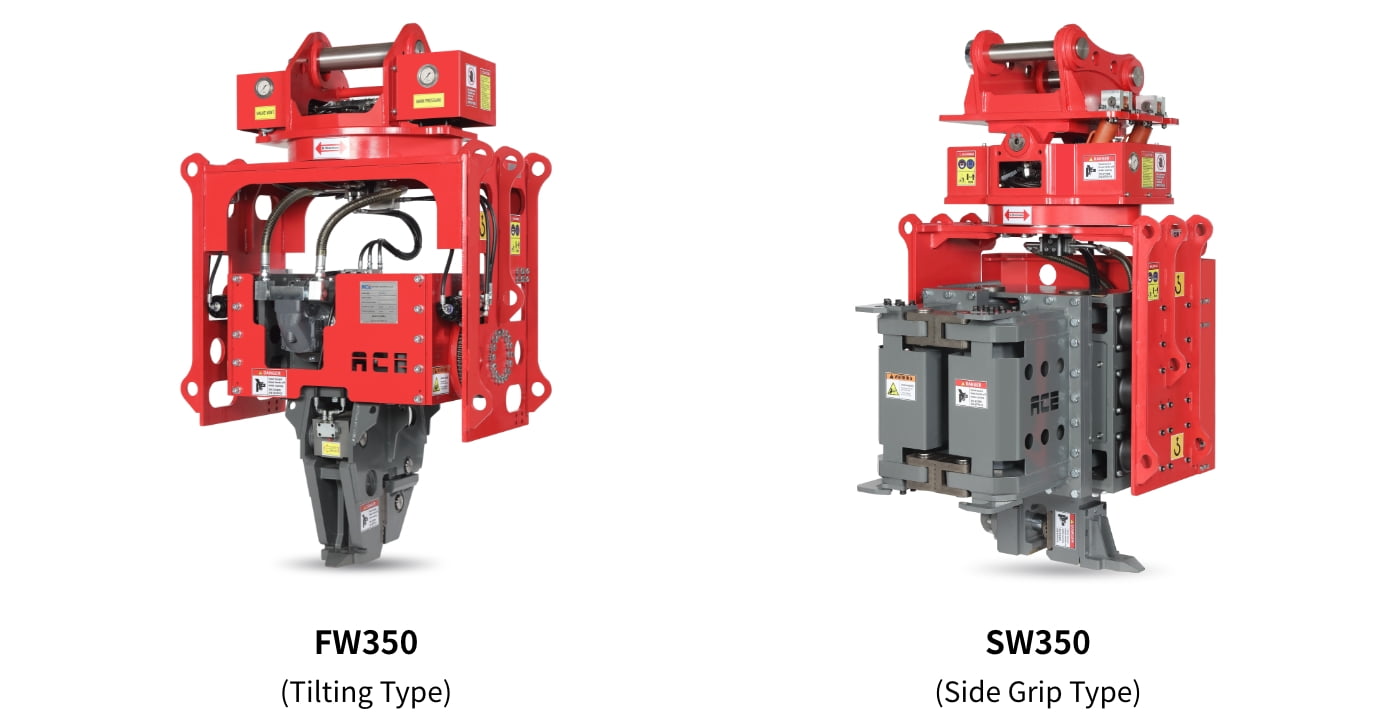

| Model | Unit | FW350 (Tilting type) |
SW350 (Side grip type) |
W350 (Basic type) |
|---|---|---|---|---|
| Suitable excavator | ton | 20~30 | 20~26 | 20~30 |
| Service weight | kg | 1,740 | 2,800 | 1,590 |
| Extension boom weight | kg | 580 | - | 580 |
| Motor size | cc | 60 | 60 | 60 |
| Frequency | bpm | 2,500~3,000 | 2,200~2,800 | 2,200~2,800 |
| Centrifugal force | Kn | 650 | 450 | 650 |
| Amplitude | mm | 12 | 12 | 12 |
| Setting pressure | bar | 250~270 | 250 | 250~270 |
| Required oil flow | L/min | 200~252 | 112~201 | 112~201 |
| Slewing | degree | 360 | 360 | - |
| Tilting | degree | 90 | 11 | - |
| Max. H-beam thickness | mm | 60 | 60 | 60 |
| Dimension (L x W x H) | mm | 2,290 x 1,340 x 780 | 2,214 x 1,312 x 1,268 | 1,790 x 1,340 x 670 |
