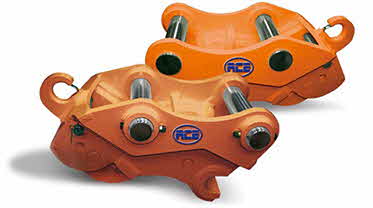

Quick Coupler
- The strongest durability on the same class prolongs its life.
- Double safety device.
- Shorten the working hours with fast removable coupler.
- Enough room for the safety pin.
Specification
| Standard | Unit | ACE Q30 |
ACE Q60 |
ACE Q80 |
ACE Q100 |
ACE Q140 |
ACE Q170 |
ACE Q200 |
|---|---|---|---|---|---|---|---|---|
| Operating Weight |
kg | 54~60 | 150~163 | 340 | 520 | 650 | 725 | 890 |

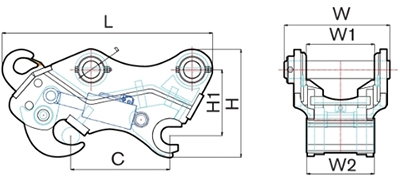

| Length (L) | mm | 575~593 | 814~820 | 970 | 1080 | 1125 | 1226 | 1285 |
| Height (H) | mm | 285 | 378 | 491 | 552 | 584 | 612 | 662 |
| Width (W) | mm | 249~259 | 408~423 | 469~503 | 535~584 | 574~624 | 630~670 | 680~710 |
| Installation Width (W1) |
mm | 155~165 | 260~275 | 306~340 | 487~540 | 410~432 | 410~440 | 470~510 |
