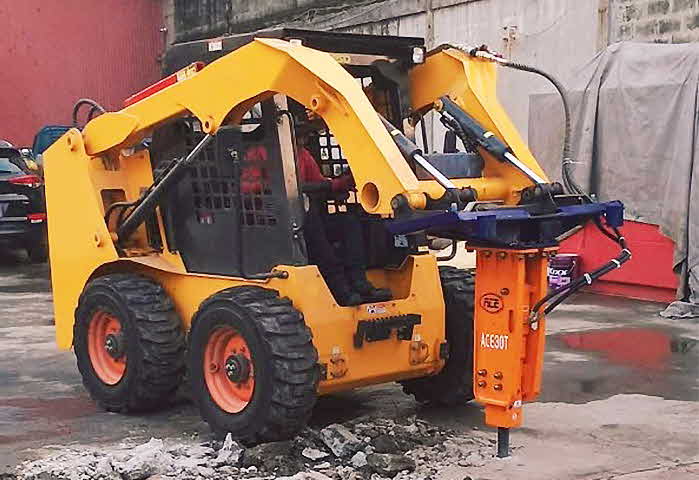

Skid Steer Loader Type
- Designed to work reliable with wide range of carriers
- Low operation coast, superior durability on light-structure
Specification
 |
 |
||
|---|---|---|---|
| Item / Model | Unit | ACE30L | ACE35SL |
| Operating Weight | Kg/lb | 155 / 342 | 225 / 496 |
| Oil Capacity | l/min | 25 ~ 50 | 30 ~ 60 |
| Setting Pressure | bar / psi | 150 / 2,176 | 150 / 2,176 |
| Operating Pressure | bar | 90 ~ 120 | 100 ~ 130 |
| psi | 1,305 ~ 1,740 | 1,450 ~ 1,885 | |
| Impact Rate | bpm | 600 ~ 1,100 | 500 ~ 1,000 |
| Impact energy | kgf.m /Joule |
32 / 314 | 48 / 470 |
| Hose diameter | inch | 1/2" | 1/2" |
| Tool Diameter | mm /inch |
53 | 60 |
| Tool length | mm | 550 | 600 |
| Carrier weight | ton | 2.5 ~ 4.5 | 3.0 ~ 5.5 |
