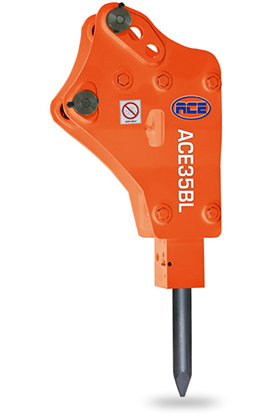

Backhoe Loader Type
- Designed for all backhoe loader
- Various pin hole for all customer
- Available in side and top type
Specification
 |
 |
 |
||
|---|---|---|---|---|
| Item / Model | Unit | ACE35BL | ACE40BL | ACE50BL |
| Operating Weight |
Kg/lb | 180 /417 | 298 / 657 | 375 / 827 |
| Oil Capacity |
l/min | 30 ~ 60 | 40 ~ 70 | 50 ~ 90 |
| Setting Pressure |
bar / psi | 150 / 2,176 | 160 / 2,321 | 180 / 2,611 |
| Operating Pressure |
bar | 100 ~ 130 | 110 ~ 140 | 120 ~ 150 |
| psi | 1,450 ~ 1,885 | 1,596 ~ 2,031 | 1,740 ~ 2,176 | |
| Impact Rate |
bpm | 500 ~ 1,000 | 500 ~ 900 | 400 ~ 800 |
| Impact energy |
kgf.m /Joule |
48 / 470 | 65 / 637 | 75 / 735 |
| Hose diameter |
inch | 1/2" | 1/2" | 1/2" |
| Tool Diameter |
mm /inch |
60 | 68 | 75 |
| Tool length | mm | 600 | 700 | 800 |
| Carrier weight |
ton | 3.0 ~ 5.5 | 4 ~ 7 | 6 ~ 9 |
