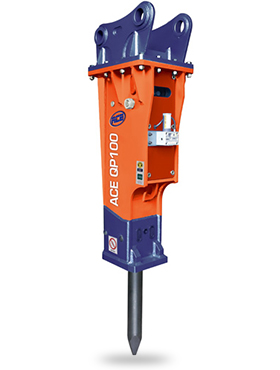

Quality Premium Type
- Enlarged piston size by increasing of superior impact power performance
- Improved lubrication greases to inject it from one spot of control valve housing only
- Minimize the vibration by expansion of gas chamber capacity from mechanism aspect
Specification
 |
 |
 |
 |
||
|---|---|---|---|---|---|
| Item / Model | Unit | ACE QP100 | ACE QP220 | ACE QP350 | ACE QP450 |
| Operating Weight |
Kg/lb | 1892 / 1,962 | 1,750 / 3,858 | 2,530 / 5,578 | 3,360 / 7,408 |
| Oil Capacity |
l/min | 80 ~ 110 | 145 ~ 180 | 175 ~ 220 | 200 ~ 250 |
| Setting Pressure |
bar / psi | 190 / 2,756 | 210 / 3,046 | 230 / 3,336 | 240 / 3,481 |
| Operating Pressure |
bar | 150 ~ 170 | 160 ~ 180 | 160 ~ 180 | 160 ~ 180 |
| psi | 2,176 ~ 2,466 | 2,321 ~ 2,611 | 2,321 ~ 2,611 | 2,321 ~ 2,611 | |
| Impact Rate |
bpm | 350 ~ 700 | 360 ~ 460 | 320 ~ 400 | 300 ~ 350 |
| Impact energy |
kgf.m /Joule |
160.2 / 1,570 | 468 / 4,586 | 780 / 7,644 | 1,110 / 10,878 |
| Hose diameter |
inch | 3/4" | 1" | 1 1/4" | 1 1/4" |
| Tool Diameter |
mm /inch |
100 / 2.3 | 135 / 2.7 | 150 / 2.9 | 165 / 3.3 |
| Tool length | mm | 1,000 | 1,200 | 1,400 | 1,450 |
| Carrier weight |
ton | 11 ~ 16 | 20 ~ 27 | 28 ~ 35 | 25 ~ 48 |
