Light Duty Range

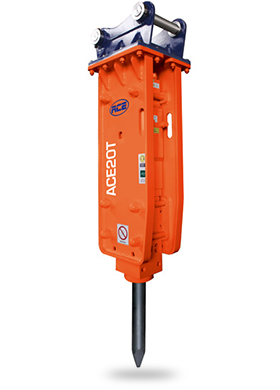

Item / Model	Unit	ACE20T	ACE30T	ACE35T	ACE40T	ACE50T	ACE70T
Operating Weight	Kg/lb	100 / 220	120 / 265	189 / 417	298 / 657	375 / 827	577 / 1,272
Oil Capacity	l/min	20 ~ 40	25 ~ 50	30 ~ 60	40 ~ 70	50 ~ 90	60 ~ 100
Setting Pressure	bar / psi	140 / 2,031	150 / 2,176	150 / 2,176	160 / 2,321	180 / 2,611	180 / 2,611
Operating Pressure	bar	90 ~ 120	90 ~ 120	100 ~ 130	110 ~ 140	120 ~ 150	130 ~ 160
	psi	1,305 ~ 1,740	1,305 ~ 1,740	1,450 ~ 1,885	1,596 ~ 2,031	1,740 ~ 2,176	1,885 ~ 2,321
Impact Rate	bpm	700 ~ 1,200	600 ~ 1,100	500 ~ 1,000	500 ~ 900	400 ~ 800	400 ~ 800
Impact energy	kgf.m /Joule	16.2 / 159	32 / 314	48 / 470	65 / 637	75 / 735	138.2 / 1,354
Hose diameter	inch	1/2"	1/2"	1/2"	1/2"	1/2"	3/4"
Tool Diameter	mm /inch	45 / 1.8	53 / 2.1	60 / 2.3	68 / 2.7	75 / 2.9	85 / 3.3
Tool length	mm	500	550	600	700	800	900
Carrier weight	ton	1.2 ~ 3.0	2.5 ~ 4.5	3.0 ~ 5.5	4.0 ~ 7.0	6.0 ~ 9.0	7.0 ~ 14

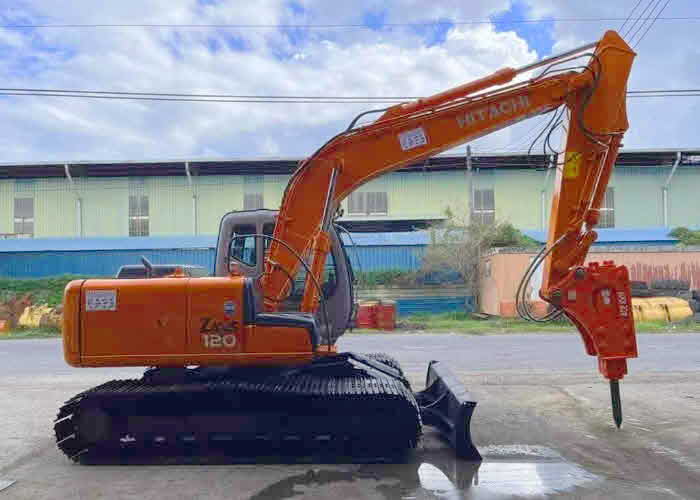

Medium Duty Range

Item / Model	Unit	ACE100T	ACE150T	ACE160T	ACE200T	ACE220T	ACE250T
Operating Weight	Kg/lb	890 / 1,962	1,210 / 2,668	1,431 / 3,155	1,675 / 3,693	1,700 / 3,748	1,786 / 3,937
Oil Capacity	l/min	80 ~ 110	90 ~ 120	90 ~ 120	100 ~ 150	125 ~ 150	120 ~ 180
Setting Pressure	bar/psi	190 / 2,756	210 / 3,046	210 / 3,046	210 / 3,046	210 / 3,046	210 / 3,046
Operating Pressure	bar	150 ~ 170	150 ~ 170	150 ~ 170	160 ~ 180	160 ~ 180	160 ~ 180
	psi	2,176 ~ 2,466	2,176 ~ 2,466	2,176 ~ 2,466	2,321 ~ 2,611	2,321 ~ 2,611	2,321 ~ 2,611
Impact Rate	bpm	350 ~ 700	400 ~ 900	350 ~ 650	350 ~ 600	400 ~ 800	350 ~ 500
Impact energy	kgf.m/Joule	160.2 / 1,570	260 / 2,549	276.5 / 2,710	360 / 3,724	430 / 4,217	475 / 4,655
Hose diameter	inch	3/4"	1"	1"	1"	1"	3"
Tool Diameter	mm/inch	100 / 3.9	120 / 4.7	125 / 4.9	135 / 5.3	135 / 5.3	140 / 5.5
Tool length	mm	1,000	1,100	1,100	1,200	1,200	1,300
Carrier weight	ton	11 ~ 16	13 ~ 18	16 ~ 18	16 ~ 21	16 ~ 21	18 ~ 26

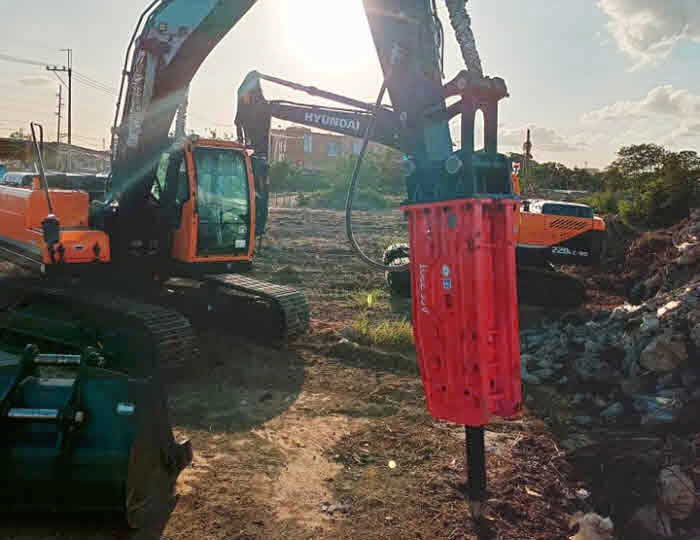

Heavy Duty Range

Item / Model	Unit	ACE350T	ACE380T	ACE400T	ACE450T	ACE500T	ACE550T
Operating Weight	Kg/lb	2,100 / 4,630	2,237 / 4,932	2,838 / 6,257	3,310 / 7,297	3,065 / 6,757	4,002 / 8,823
Oil Capacity	l/min	160 ~ 190	150 ~ 210	180 ~ 240	200 ~ 250	200 ~ 260	210 ~ 290
Setting Pressure	bar/psi	230 / 3,336	230 / 3,336	230 / 3,336	240 / 3,481	250 / 3,626	250 / 3,626
Operating Pressure	bar	160 ~ 180	160 ~ 180	160 ~ 180	160 ~ 180	160 ~ 180	160 ~ 180
	psi	2,321 ~ 2,611	2,321 ~ 2,611	2,321 ~ 2,611	2,321 ~ 2,611	2,321 ~ 2,611	2,321 ~ 2,611
Impact Rate	bpm	360 ~ 700	300 ~ 450	300 ~ 450	300 ~ 350	250 ~ 400	200 ~ 350
Impact energy	kgf.m/Joule	600 / 5,884	620 / 6.080	656 / 6,429	920 / 9,022	1,340 / 13,132	1,547 / 15,161
Hose diameter	inch	1"	1 1/4"	1 1/4"	1 1/4"	1 1/4"	1 1/4"
Tool Diameter	mm/inch	150 / 5.9	150 / 5.9	155 / 6.1	160 / 6.3	165 / 6.5	175 / 6.9
Tool length	mm	1,300	1,400	1,500	1,400	1,600	1,600
Carrier weight	ton	27 ~ 35	25 ~ 30	28 ~ 35	32 ~ 44	30 ~ 45	40 ~ 55
